Filterturm Airtower zur Hallenabsaugung

in Detail

the Airtower of filter towers

The AIRTOWER filter tower is specifically designed for industries where hall extraction is often the only option: metalworking and mechanical engineering. It has been proven to efficiently remove oil mist, coolants, and fumes from the air.

This hall ventilation unit operates without ductwork, using the layered ventilation principle. Thanks to forklift slots and crane eyes, the filter tower can be quickly and easily positioned anywhere: set it up, connect power and compressed air, and you're ready to go.

what needs to be extracted

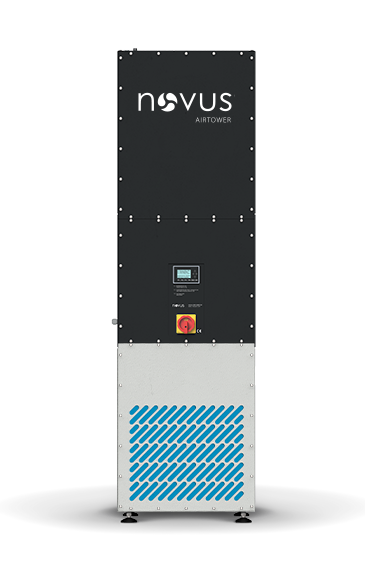

AIRTOWER compact M

3,400 m³/h to 4,250 m³/h air volume flow
H14 fine dust filter, separation efficiency > 99.995%
Compact footprint < 0.5 m²
Wall-mountable
Energy-efficient EC fans

Get AdviceGet Advice

Airtower M

Hall extraction of coolant emissions
Filter bags, class M6
Second filter stage, class G4
5,000 m³/h to 20,000 m³/h air volume flow

get adviceget advice

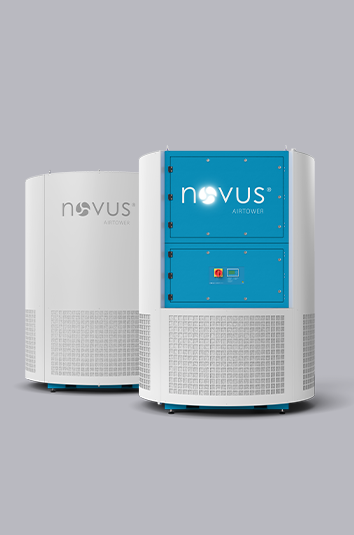

AIRTOWER Climate

20,000 m³/h air volume
Four large heat exchangers, individually controllable
360° air conditioning

get advideget advide

AIRTOWER compact F

3.400 m³/h to 4.250 m³/h air volume flow
H14 fine dust filter, separation efficiency > 99.995%
Smallest footprint < 0.5 m²
Wall-mountable
Energy-efficient EC fans

Airtower F

Hall extraction for welding fumes
10.000 m³/h to 20.000 m³/h air volume flow
Up to 200 liters dust discharge

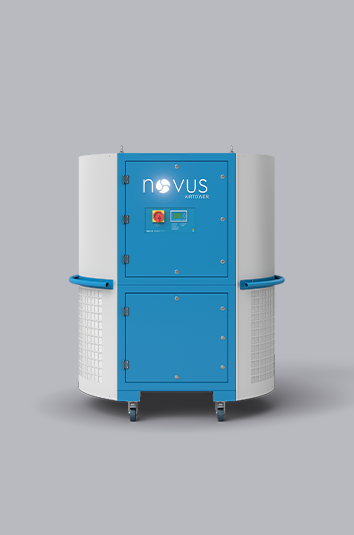

AIRTOWER Go F

5,000 m³/h to 10,000 m³/h air volume flow
Flexible setup and easy mobility thanks to low height and heavy-duty wheels
Also suitable for soldering fumes

Specialist at a glance

Airtower

+ Versatile solution for hall extraction
+ Welding fumes, oil mist, dust, aerosols, odors
+ 10,000 m³/h to 20,000 m³/h air volume

AIRTOWER Go

+ Welding fumes, dust, or aerosols
+ Mobile filter tower with heavy-duty wheels
+ 5,000 m³/h or 10,000 m³/h air volume

AIRTOWER compact

+ Welding fumes, dust, or aerosols
+ Maximum performance with minimal footprint
+ 3,400 m³/h or 4,250 m³/h air volume
+ Wall-mountable

AIRTOWER climate

+ Oil mist
+ four heat exchangers for 360° air distribution
+ 20,000 m³/h air volume

Airtower Pipe

+ Welding fumes
+ Connection to a stationary duct system
+ 5,000 m³/h to 10,000 m³/h air volume

Airtower

Particle sensor

request nowrequest now

The particle sensor detects the fine dust content in the air and transmits this data to a downstream control system. This allows the performance of the fans, which are essential for air circulation, to be automatically adjusted. LEDs provide real-time information on the current particle density, ensuring that you always have a clear view of the air quality.

Airtower

Efficiency Package

request nowrequest now

With the optional efficiency package, you can achieve up to 60% energy savings at full performance and reduce noise levels by up to 10 dB(A). The system becomes infinitely adjustable, ensuring optimal airflow through the cartridges, which means more air volume throughout the entire lifespan of the filter cartridges.

Airtower

climate package

request nowrequest now

Cooling, heating, and filtering all in one system. The climate package enhances indoor air quality by actively controlling the outlet temperature, leading to reduced heating and energy costs.

Airtower

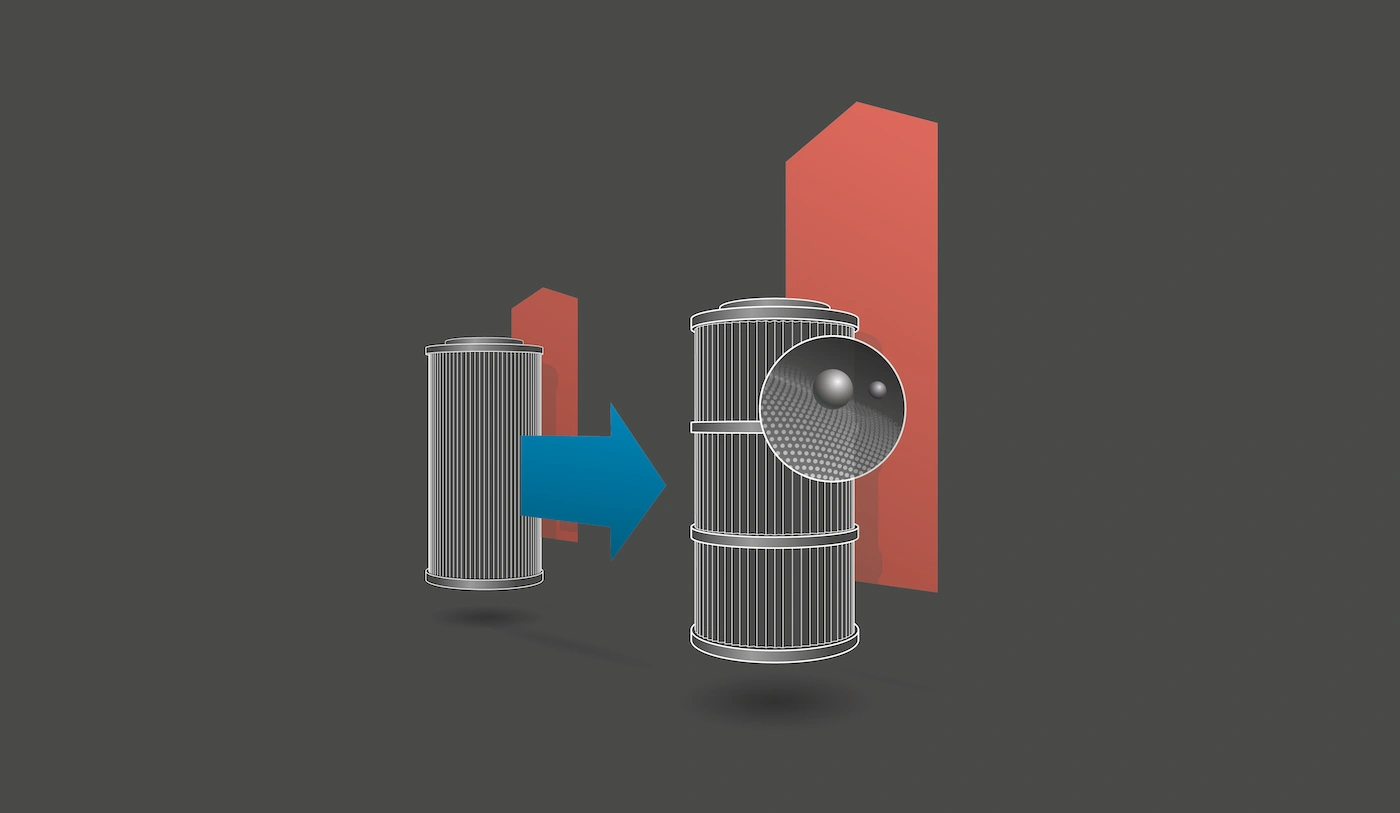

Nano filter cartridge set

request nowrequest now

Nano filter cartridges with corrugated polyester media and a nanofiber layer are used. Significantly lower flow resistance increases efficiency, resulting in much lower electricity and compressed air consumption, as well as an extended lifespan of the filter cartridges. An initial precoating is no longer required.

Airtower

Safety Package

request nowrequest now

Protect your facility and your employees. The options package includes patented particle impact separators, flame-retardant filter cartridges, a downstream smoke sensor, and a temperature sensor in the dust collection drawer. This powerful combination ensures long-term system availability and enhances overall safety.

Separation insert

Dust Collection Drawer

A total of four inserts equipped with plastic bags make cleaning even easier. Simply pull out the drawer, remove and dispose of the dust collection bags individually. The separation insert can, of course, be retrofitted if needed.

Häufig gestellte Fragen

What is the layered ventilation principle?

Thermal currents cause air contaminated with welding fumes to rise. The AIRTOWER captures this air, filters it, and releases it back as clean air near the floor, free of drafts. This creates a protected zone for people and machinery, known as the "fresh air zone."

How high is the fresh air zone?

The fresh air zone is slightly taller than an AIRTOWER, about four meters high.

Are all extraction systems in the series adjustable?

AIRTOWER units can be adjusted manually. When equipped with the efficiency package and a particle sensor, the performance can be automatically regulated and adjusted in real-time based on the measured particle levels.

What are the requirements for using the filter tower?

The AIRTOWER is designed as a plug-and-play device, allowing for easy installation. However, it requires a power connection (CEE plug) to operate. Additionally, systems with filter cleaning require a permanent connection to a compressed air supply. For units that offer heating and cooling, they must be connected to the supply and return of the source system. A standard pressure of 6-8 bar should be maintained, and the compressed air should be oil- and water-free. All Novus systems come with a built-in pressure regulator pre-filter to meet these requirements. If you have any questions or concerns, we’re happy to assist!

Are there any insights on how much heating costs can be saved with the filter tower?

Yes! Thanks to the AIRTOWER's design, rising warm air is captured at several meters high and released back near the floor. This greatly improves heat distribution in your hall, preventing heat buildup near the ceiling. Particularly in processes like welding, where significant heat is generated, the warm air rises and is recirculated evenly throughout the space. This helps you reach your desired room temperature faster. Based on customer feedback, heating cost reductions of 50% to 100% are achievable with the filter tower. Of course, the savings depend on factors such as the size of your hall, the number of welders, and the intensity of the welding processes. Overall, the AIRTOWER is an effective way to reduce heating costs and improve the climate in your hall.

Can the AIRTOWER be used when there is a risk of spark ingestion?

Yes! The AIRTOWER can be used even when there’s a higher risk of spark ingestion. The safety options package provides multi-stage protection, including pre-separation and sensors that shield the tower from fire. The particle impact separator captures 99% of sparks, and any remaining sparks pass through S-curves before being extinguished and collected in flame-retardant filter cartridges. These cartridges are non-flammable and do not melt, preventing the detection of melting points. While there is still a minimal risk that sparks may reach the filter cartridges or drawer, the system includes a temperature sensor in the drawer that automatically shuts down in the event of overheating, along with a sensitive smoke detector that triggers both visual and audible alarms if fire is detected. Altogether, the AIRTOWER safety package offers comprehensive protection, allowing safe use even in high-risk spark environments.

How many filter towers do I need for my facility, and how should the AIRTOWER be positioned?

There’s a detailed calculation guide to help determine the number of filter towers required for your facility. However, theory alone isn’t enough for an optimal solution. It’s important for us to assess your individual situation on-site and apply our years of experience in the planning process. Positioning the filter towers is equally critical. In most cases, it’s recommended to place the towers near emission sources and direct airflow towards workstations for effective filtration performance. We emphasize that proper placement is key to ensuring efficiency and functionality. We’re happy to assist in finding the best solution for your facility. Contact us for a tailored, no-obligation quote.
